Active Speakers

QSC K10.2 Powered 10-inch 2-way

Name: QSC K10.2 Powered 10-inch 2-way
Brand: QSC
SKU: QSCK10-2
Availability: InStock

QSC

SKU: QSCK10-2

Price on enquiry

Enquire Now

Best in class audio performance 2000 Watt Class-D amplifier module Intrinsic Correction™ tuning and loudspeaker management Directivity Matched Transition® (DMT) design provides excellent power response and consistent performance across the listening area Refined, professional appearance looks great in any application Rugged ABS enclosure for long life and lasting durability Deployment in either main PA or floor monitor position Factory Presets and savable/recallable Scenes for commonly-used application Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour Dual pole cup mounts (standard and 7.5 degree down-tilt) M10 fittings for flown applications Optional security panel prevents unauthorized tampering of controls Complete EASE and CAD information available online 6 Year Warranty when registered within 30 days of purchase

The QSC K.2 Series™ represents the best-in-class loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

1 Calculated for 1 m, based on sensitivity (full-space for full range systems and half-space for LF-only and subwoofer systems) and peak power capability of amplifier.
2 1/8 power is representative of current draw with typical music program material with occasional clipping.

Back to Active Speakers

Configuration Multi-purpose, 2-way active loudspeaker
LF Transducer 254 mm (10-inch), cone
HF Transducer 35.6 mm (1.4-inch) titanium diaphragm compression driver
Frequency Response (-6 dB) 56 Hz - 20 kHz
Frequency Range (-10 dB) 50 Hz - 20 kHz
Nominal Coverage Angle 90° Axisymmetric
Maximum Rated SPL1
Cooling 130 dB @1 M, peak 124 dB @ 1 M, continuous
Class D
Peak	1800 W (LF), 225 W (HF)
Low-noise, variable speed fan

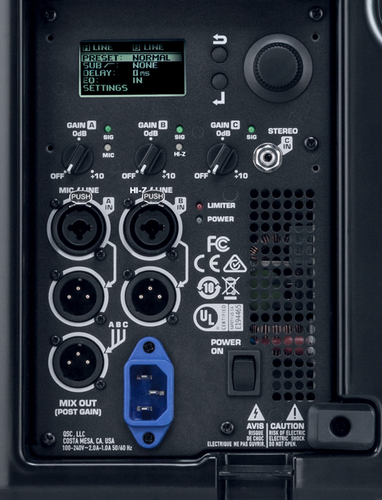

Controls Power
3 × Level
Rotary encoder (push)
2 × selection buttons
Indicators Monochrome LCD Display 45 mm × 25.4 mm (1.75-inch x 1-inch)
2 × Power LED (front and rear)
3 × Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED
Connectors 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input
1 × 3.5 mm TRS (Stereo Input)
2 × XLR/M (Loop-thru Output)
1 × XLR/M (Mix Output)
1 × locking IEC power connector
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power2 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby 0.2 A at any voltage
Enclosure Impact Resistant ABS

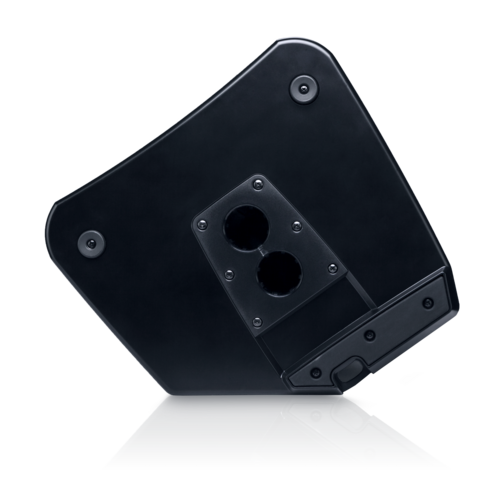

Attachment Points 2 × M10 threaded inserts plus Pull-Back
Color Black (RAL 9011)
Grille 18 Gauge powered coated steel, internal cloth lining
Speaker Dimensions (H×W×D) 519 × 320 × 300 mm
Carton Dimensions (H×W×D) 570 × 440 × 406 mm
Net Weight 14.5 kg
Shipping Weight 17.6 kg
Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
