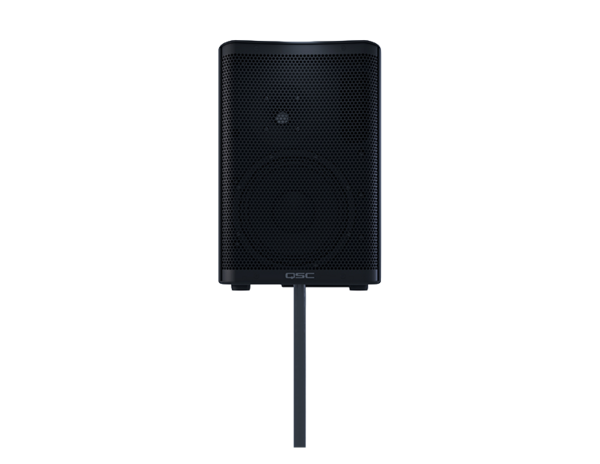

QSC CP8 8-inch Compact Powered Loudspeaker

Name: QSC CP8 8-inch Compact Powered Loudspeaker
Brand: QSC
SKU: QSCCP8
Availability: InStock

QSC

SKU: QSCCP8

Price on enquiry

Enquire Now

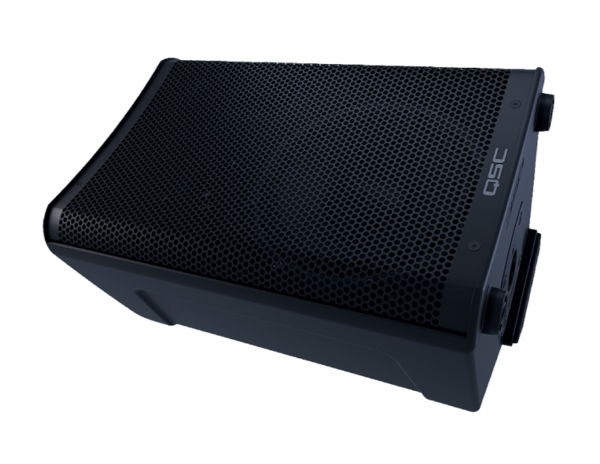

1000-watt peak power 8-inch woofer 1.4-inch HF compression driver 124 dB @ 1 m (peak SPL) Intrinsic Correction™ DMT™ (Directivity Matched Transition) One-touch contours: Default, Dance, Floor Monitor, Speech 3-Channel built-in mixer Mix output: XLR male connector to easily link multiple speakers or send the mixed signal to another system Ultra-compact & lightweight: weighs only 21 lbs (9.5 kg) Multi-purpose enclosure: rugged polypropylene cabinet features a 55° wedge angle Mounting options: 35 mm pole socket for stand mounting and M10 threaded inserts for permanent installations Professional build: 18-gauge powder-coated steel grille and a stylish yet durable exterior 6-Year Warranty (with product registration within 30 days of purchase)

Compact power.
Embodying the high performance, superior quality and lasting reliability you expect from QSC, the CP8 offers unparalleled value in an ultra-compact form factor. Incredibly compact and lightweight, the CP8 is easy to lift, carry and transport without sacrificing professional PA performance.

1Peak SPL is measured on-axis at 1 m, with dynamic pink noise

Back to Active Speakers

Model CP8
Configuration Two-way active loudspeaker
LF Transducer	203 mm (8 in) , cone
HF Transducer	35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB) 56 - 20 kHz
Frequency Range (-10 dB) 53 - 20 kHz
Nominal Coverage Angle	90° Axisymetric
Maximum Rated SPL1	124 dB
Amplifier	Class D
Peak	800 W (LF), 200 W (HF)
Controls	Power
2 x Gain
Mic Boost Push Switch
6-way Contour Selection Switch
Indicators	Power LED
2 × Input Signal LED
Input B MIC selected LED
Limiter active LED

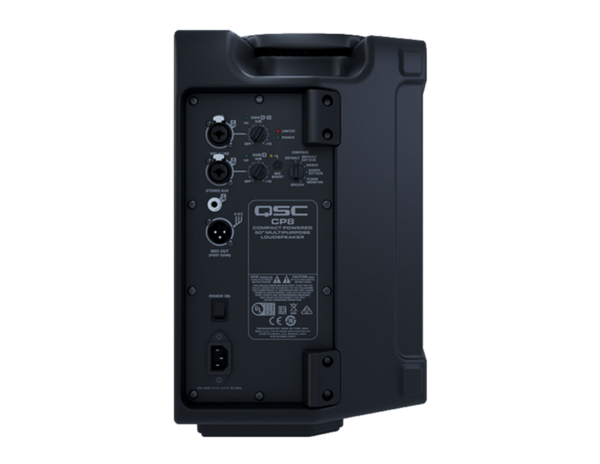

Connectors	2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)
1 × 3.5 mm TRS (Stereo Input)
1 × XLR/M (Mix Output)
1 × IEC power connector
AC Power Input	Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power)	100 VAC, 0.75A - 240VAC 0.31A
Enclosure Material	Polypropylene
Attachment Points	M8 threaded insert
Color	Black (RAL 9011)
Grille	18 Gauge powder-coated steel
Speaker Dimensions (H×W×D)	411 × 273 × 256 mm
Carton Dimensions (H×W×D)	360 × 360 × 496 mm
Net Weight	9.5 kg
Shipping Weight	11.5 kg
Regulatory	EMC, UL, CB
