H2400 Hybrid PA Amplifier 2 x 900W RMS @ 4ohm
Citronic
SKU: 172.124
Price on enquiry
Enquire NowHybrid class-H circuit design Digitally controlled and monitored power section Industry standard Class-AB bi-polar output stage Backlit LCD status display Full internal thermal and overload protection Stable down to 2 Ohms (4 Ohms bridged)
H2400 Hybrid Amp 2x900W @ 4ohm

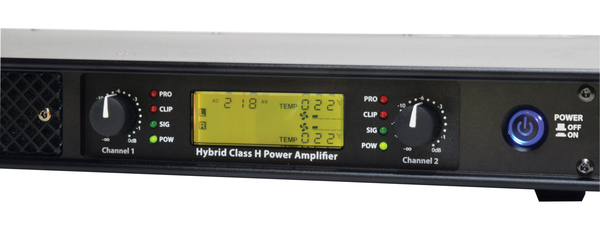

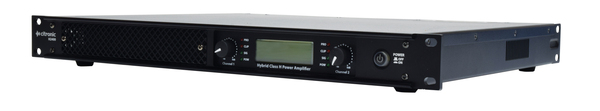

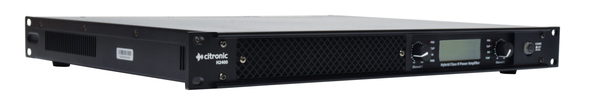

Lightweight power amplifiers in a 1U rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-AB output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes.

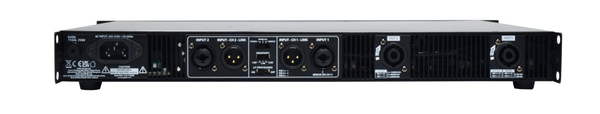

Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.
Amplifier : construction Hybrid Class-H
Protection Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush limiting.
Frequency response 20Hz-20KHz ±0.5dB
THD +N 0.2%
Damping factor >700
Input sensitivity 1.0V - 1.4V - 2.0V switchable
Input impedance 20Kohm (balanced),10Kohm (unbalanced)
Dimensions 483 x 361 x 44 mm (1U)
