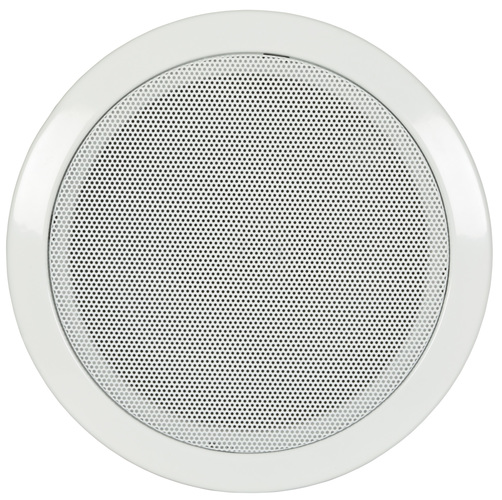

Fire Dome EN54 Ceiling Speaker 5.25 inches - 100 Volt - 6 Watt

Fire Dome Ceiling Speaker

100V ceiling speaker with a rear dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V. Certified to EN54 standard for compliance with fire detection and alarm systems requirements.

EN54-24 certified

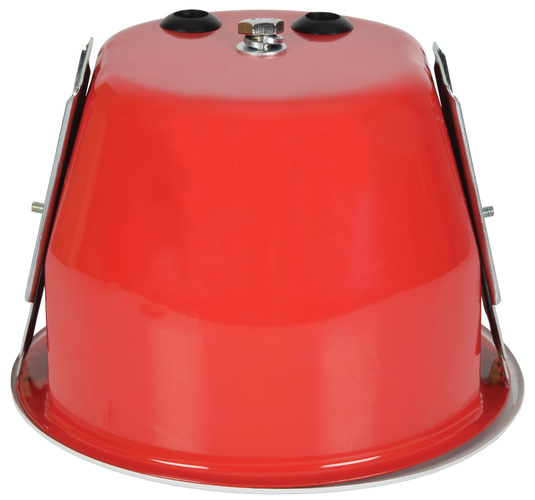

Supplied with flush mount fire dome

4 x 100V volume tappings

Spring loaded speaker retainers

All metal frame and basket

Fire-resistant cable to 95°C

Ceramic screw terminals

Specification : Common

100V line tappings 0.75W, 1.5W, 3W, 6W

Fire rating EN54-24

SPL @ 1W/1m 92dB

Frame material Steel (powder coated)

Frequency response 130Hz - 15kHz

Cutout 160mmØ

Driver 135mmØ (5.25") reinforced paper cone

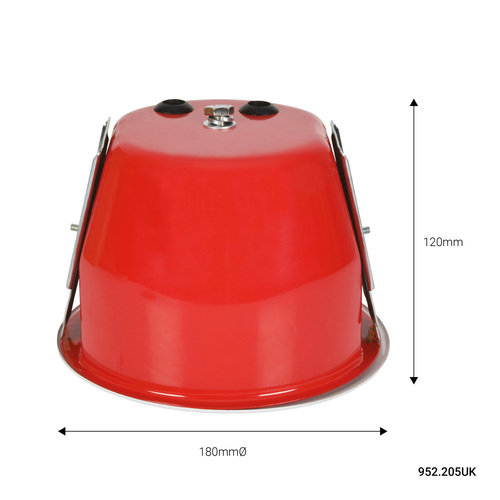

Dimensions120 x 180mmØ

Weight 1.23kg
