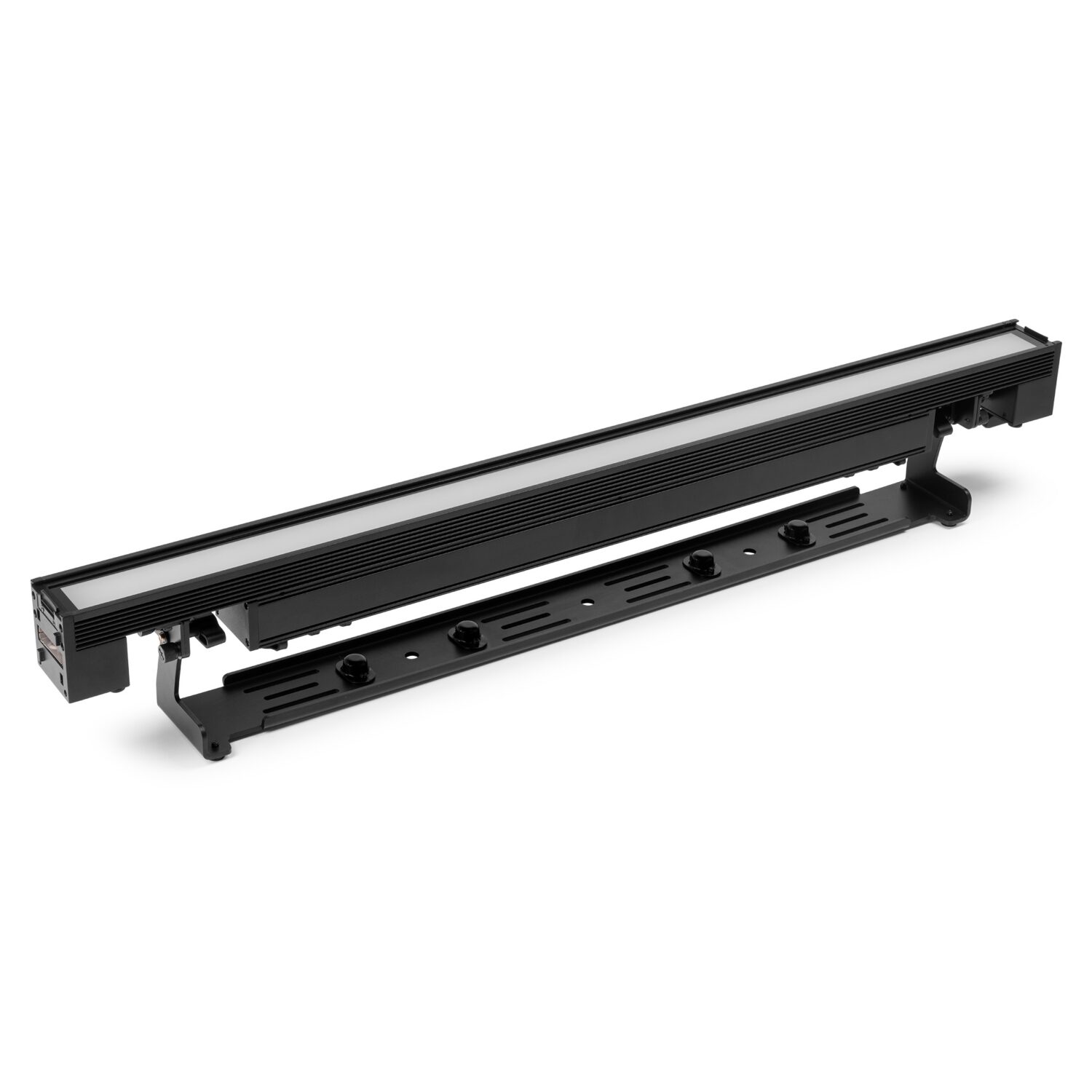

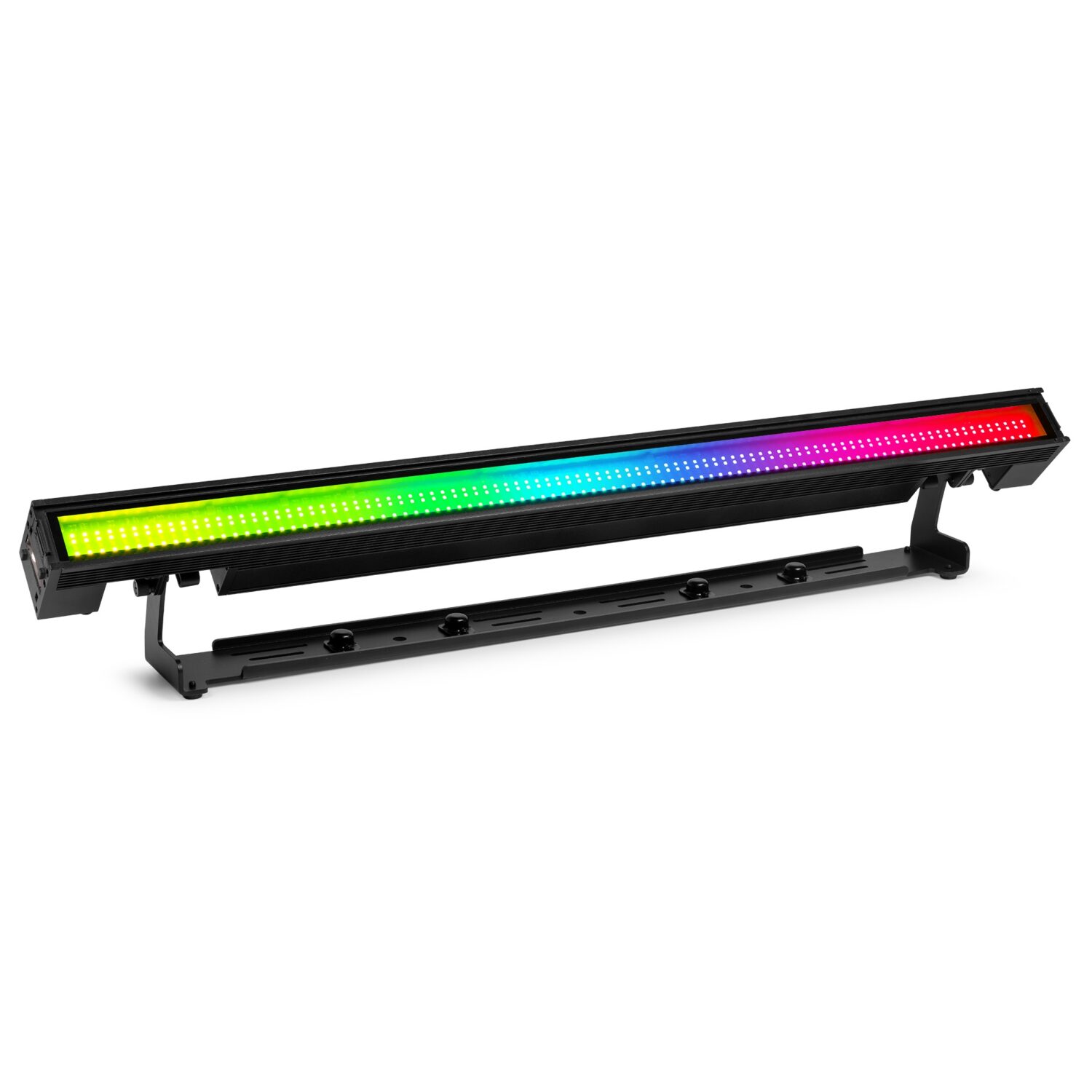

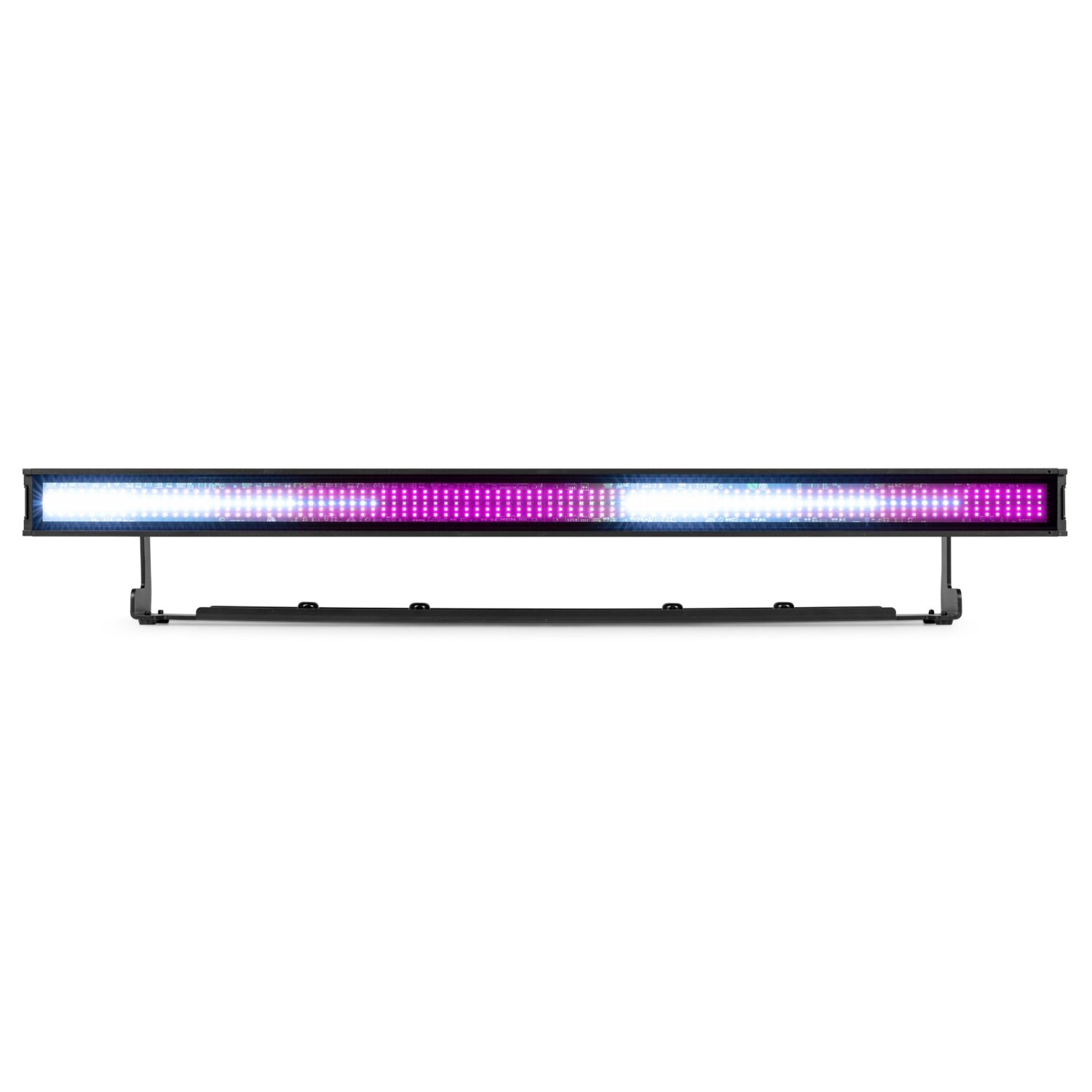

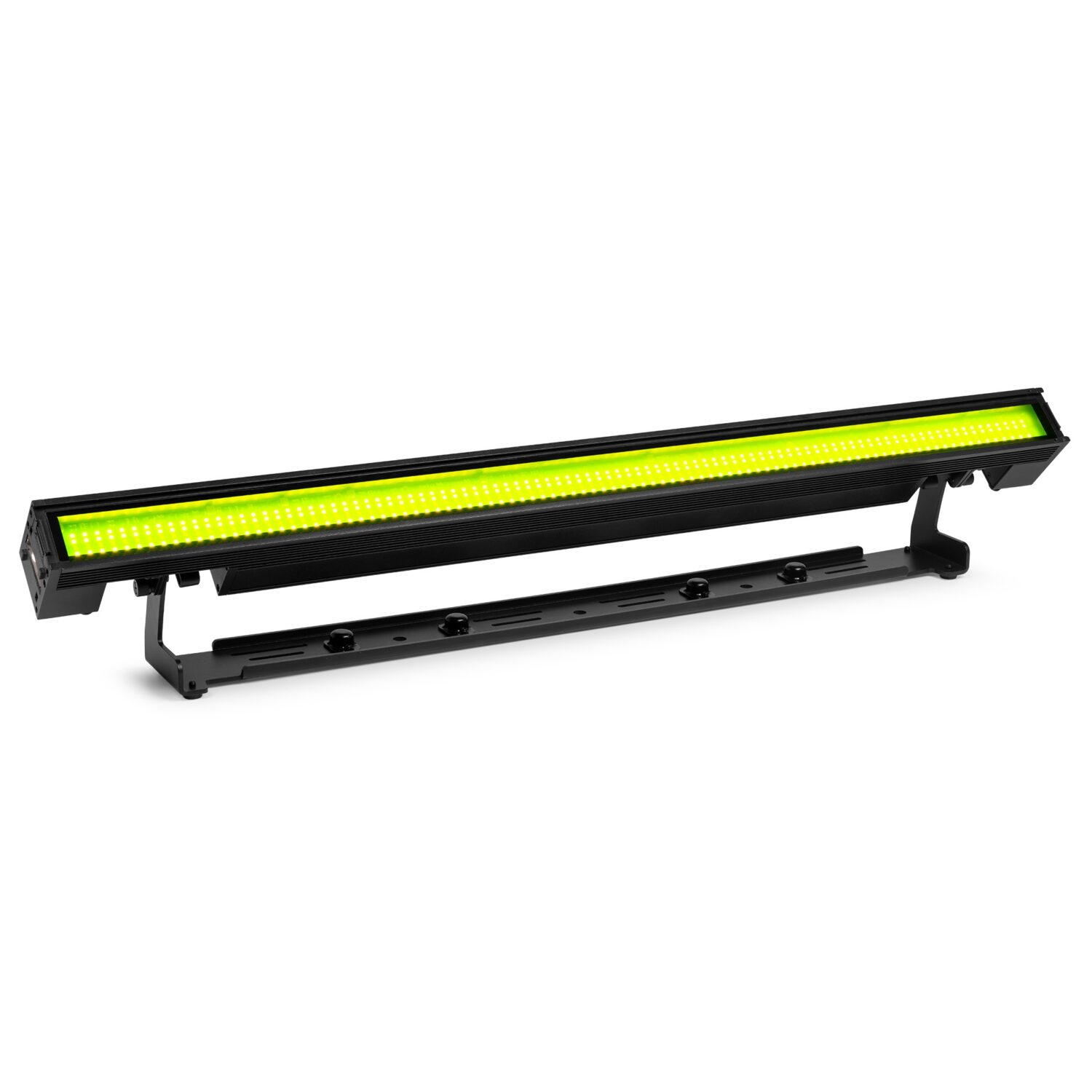

DOTBAR PIX1 Outdoor SMD LED Bar
SKU: 151.800
Price on enquiry
Enquire Now| Product colour | Black |
| Light source | Single colour LED, 3-in-1 LED |
| Colours | Red, Green, Blue, Cool White |
| LED power (single LED) | 0.5W, 1W |
| Colour temperature | 6500K |
| Quantity of LEDs | 384 RGB |
| Quantity of strobe LEDs | 96 CW |
| Beam angle | 46° x 58° |
| Field angle | 105° x 105° |
| Illuminance | 12.984 lx @ 0.5m |
| Flash rate per second | 1 - 20Hz |
| Modes | Automatic programs, DMX, Master/Slave |
| RDM | Yes |
| DMX channels | 3, 13, 24, 38, 52, 96 |
| DMX connection | 3-pin XLR, 5-pin XLR |
| IP rating | IP65 |
| Cooling | Convection |

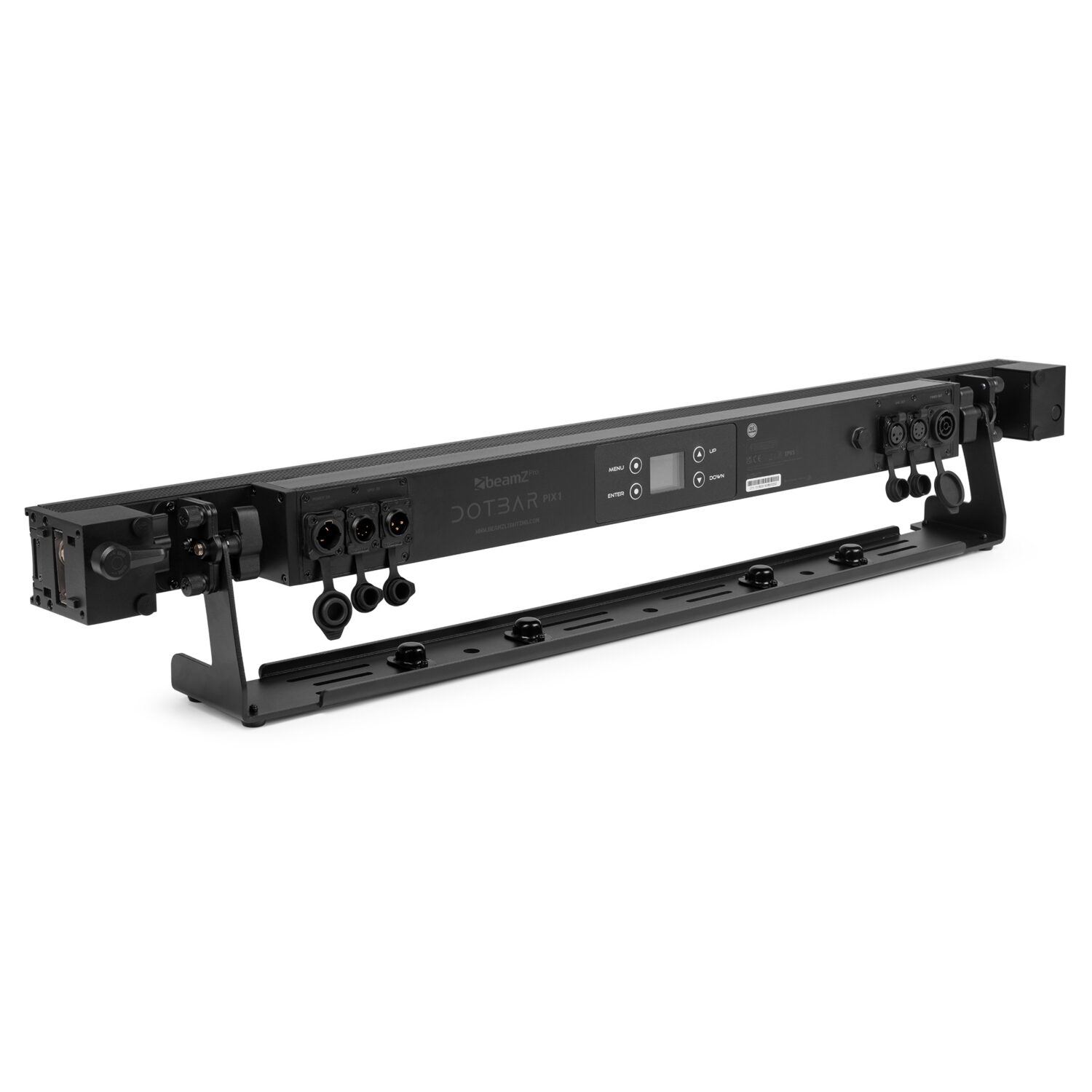

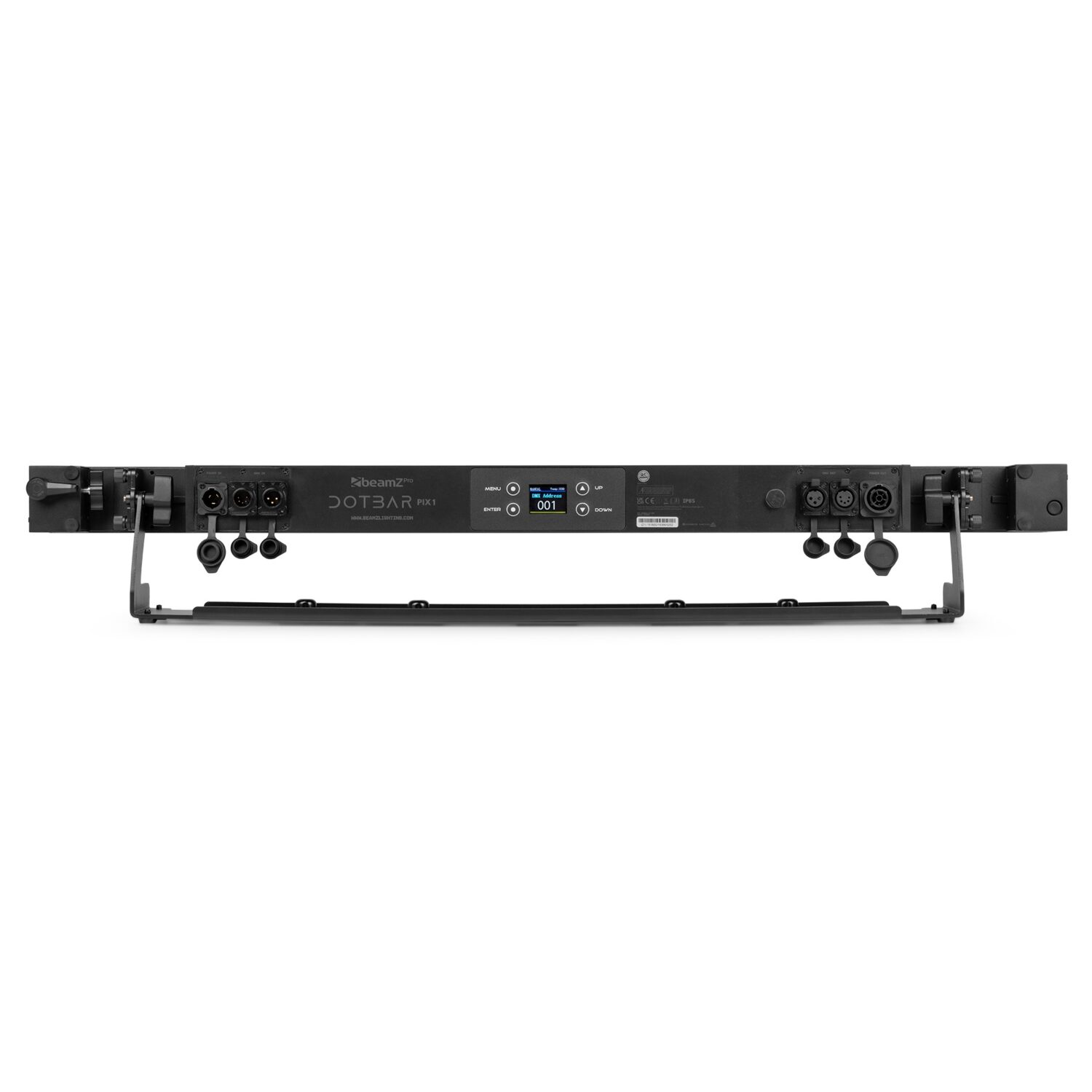

| Display | LCD |
| Power plug | P-Con TR1 |
| Power consumption | 1.028 - 0.509A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 1000 x 90 x 160mm |
| Weight (kg) | 6.6500 |

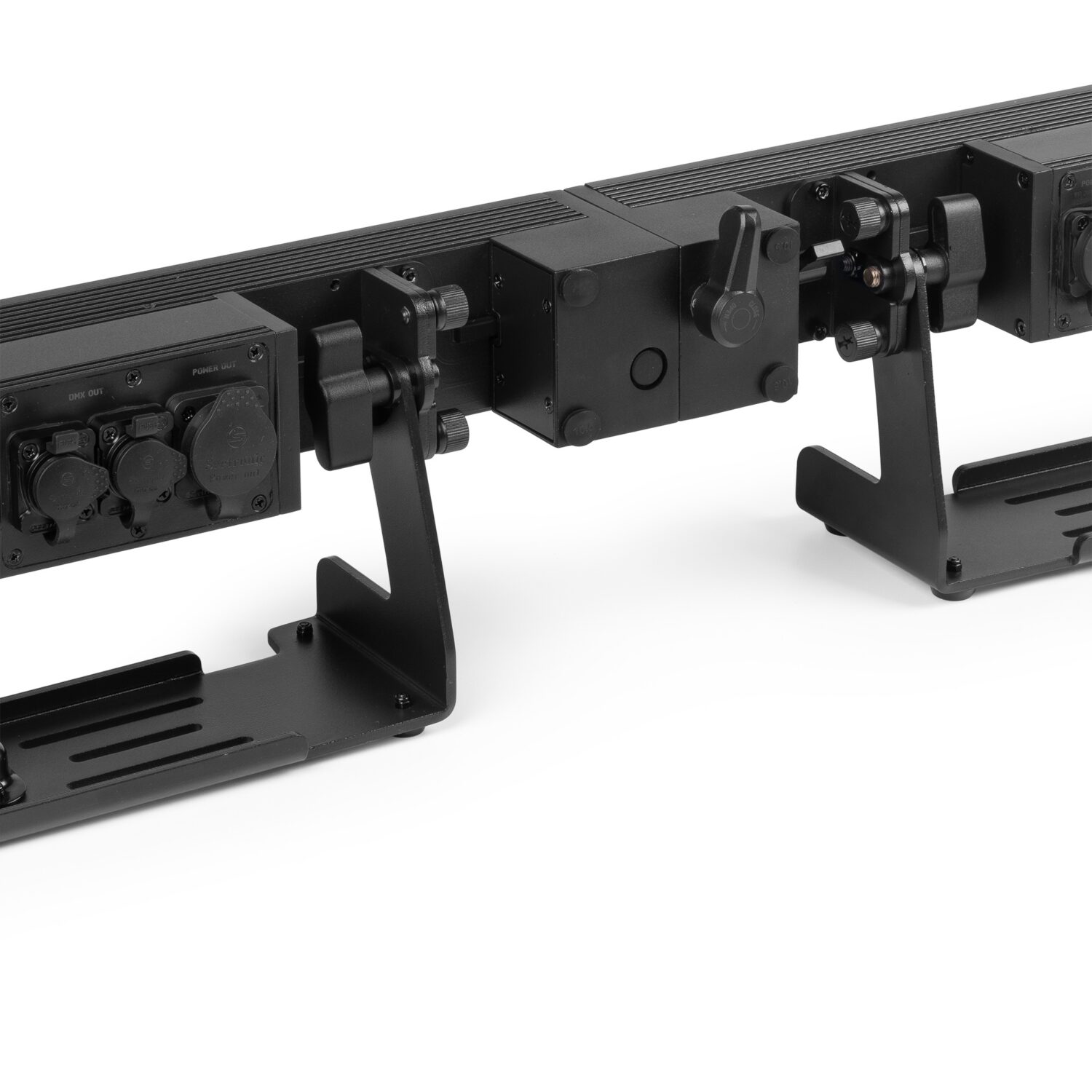

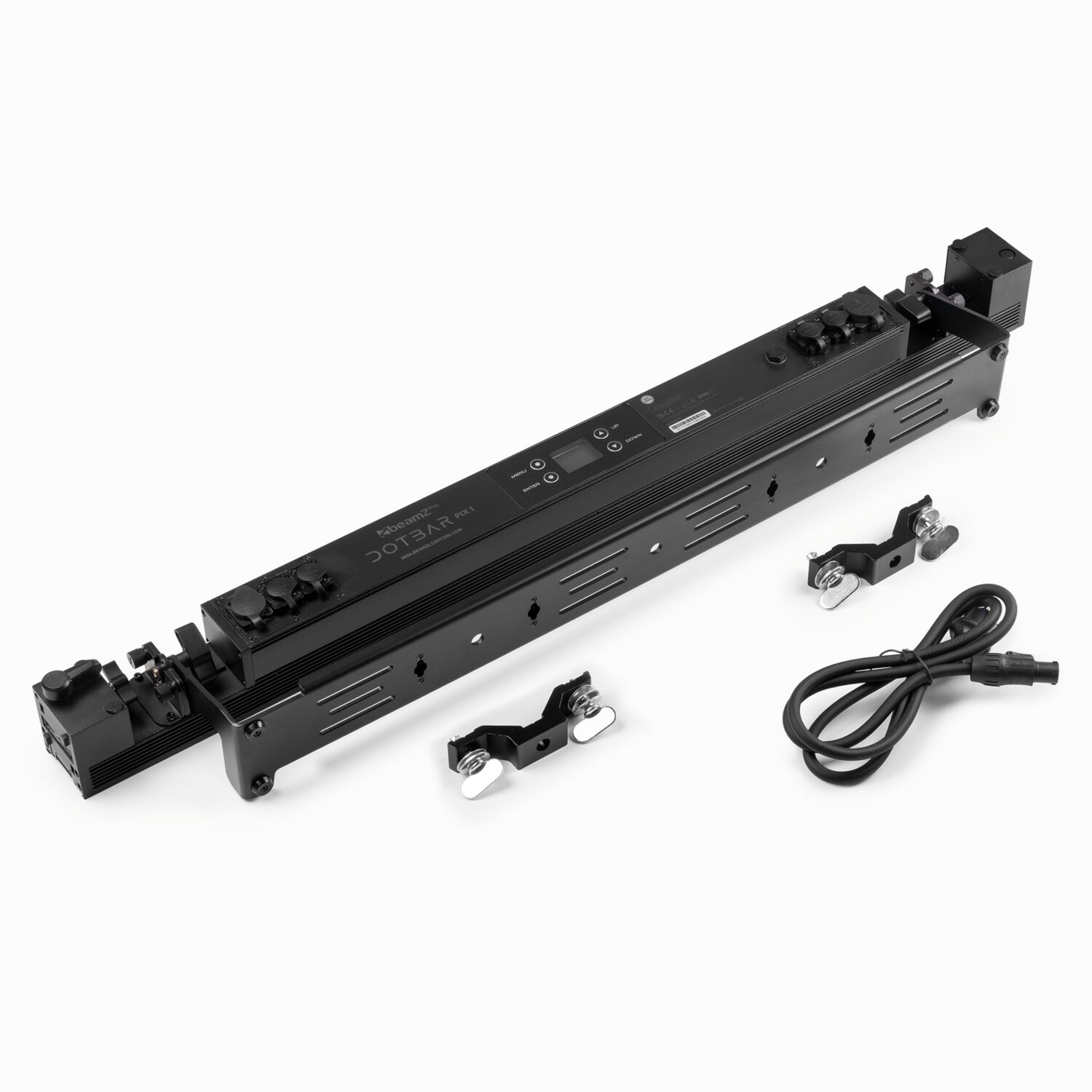

| Included accessories | Mounting bracket |
