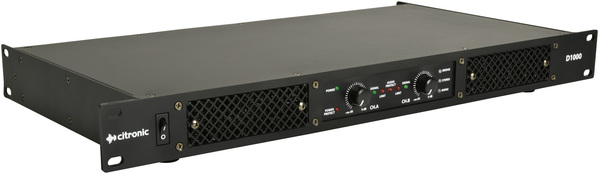

D1000 D-Series Class-D Power Amplifier 2 x 500 Watts RMS

Citronic

SKU: 172.110

Price on enquiry

Enquire Now

Cool and efficient operation even at high output Compact and lightweight 1U rack format Switchable parallel and bridge modes

D-Series Class-D Power Amplifier

Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different confgurations to handle even the most demanding of sound reinforcement duties.

Power rms @ 4 Ohms - 2 x 500W

Power rms @ 8 Ohms - 2 x 300W

Bridge power @ 8 Ohms - 1 x 1000W



Power supply 240Vac, 50Hz (IEC)

Modes Stereo, Parallel (mono), Bridge (mono)

Input sensitivity 0.775V - 1.0V - 1.44V switchable

Low-cut filter 75Hz switchable

Input connections L+R XLR female (L+R XLR male through)

Output connections L+R SPK connectors (+1 for bridge mode)

Dimensions 482 x 245 x 44mm
