BC50-200D Swivel Coupler Slimline 200kg Alu

Name: BC50-200D Swivel Coupler Slimline 200kg Alu
Brand: beamZ
SKU: 151.417
Availability: InStock

SKU: 151.417

Price on enquiry

Enquire Now

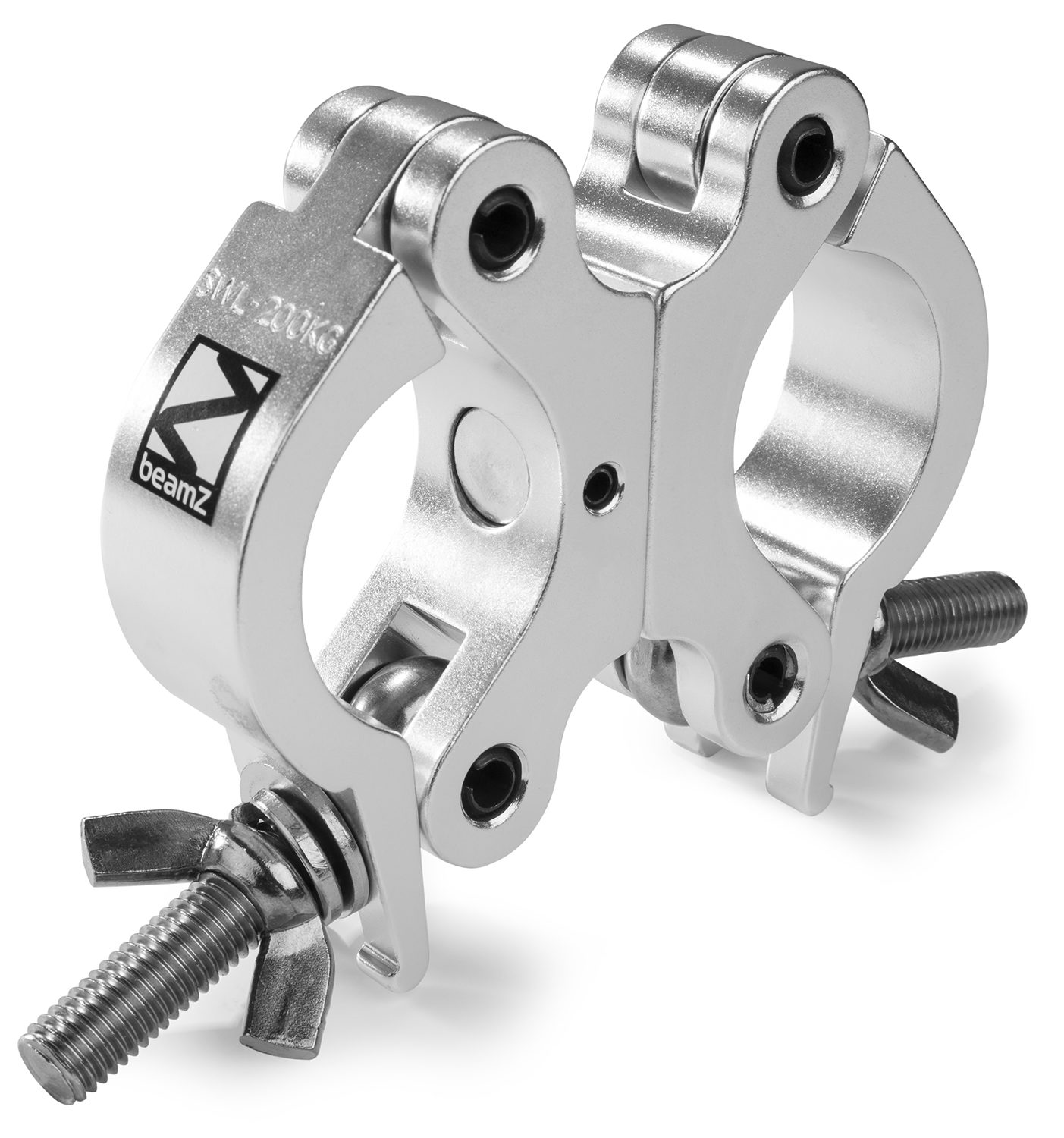

Heavy duty aluminium clamp
Butterfly and nut fixing

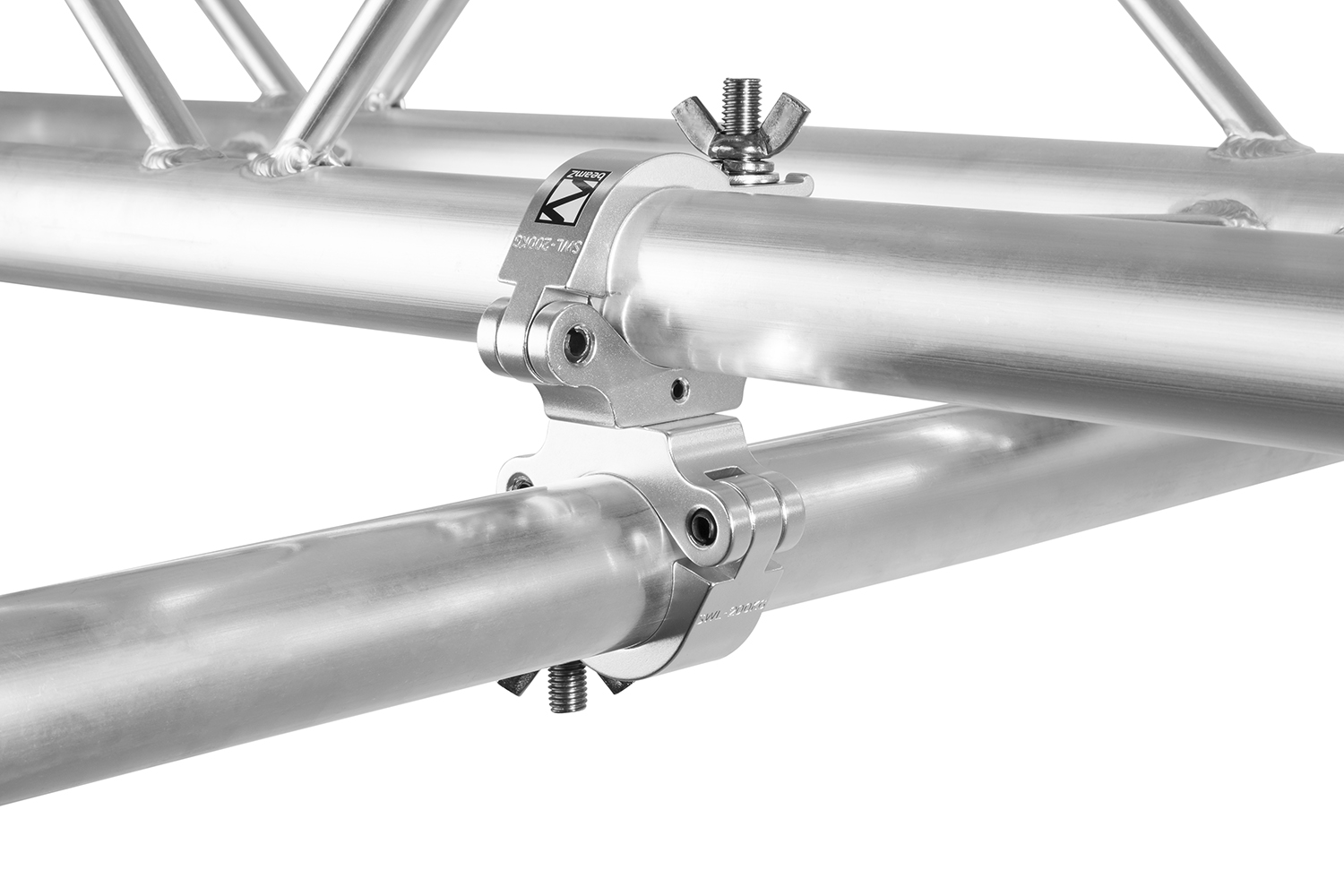

Heavy duty universal aluminium slimline swivel coupler for pipe and truss mounting fixtures. Swivel Coupler provides a firm fixing between adjacent bars whilst allowing 360 degrees of movement. High-strength aluminum construction.

Back to Clamps

Product colour	Aluminium
Material	Aluminum

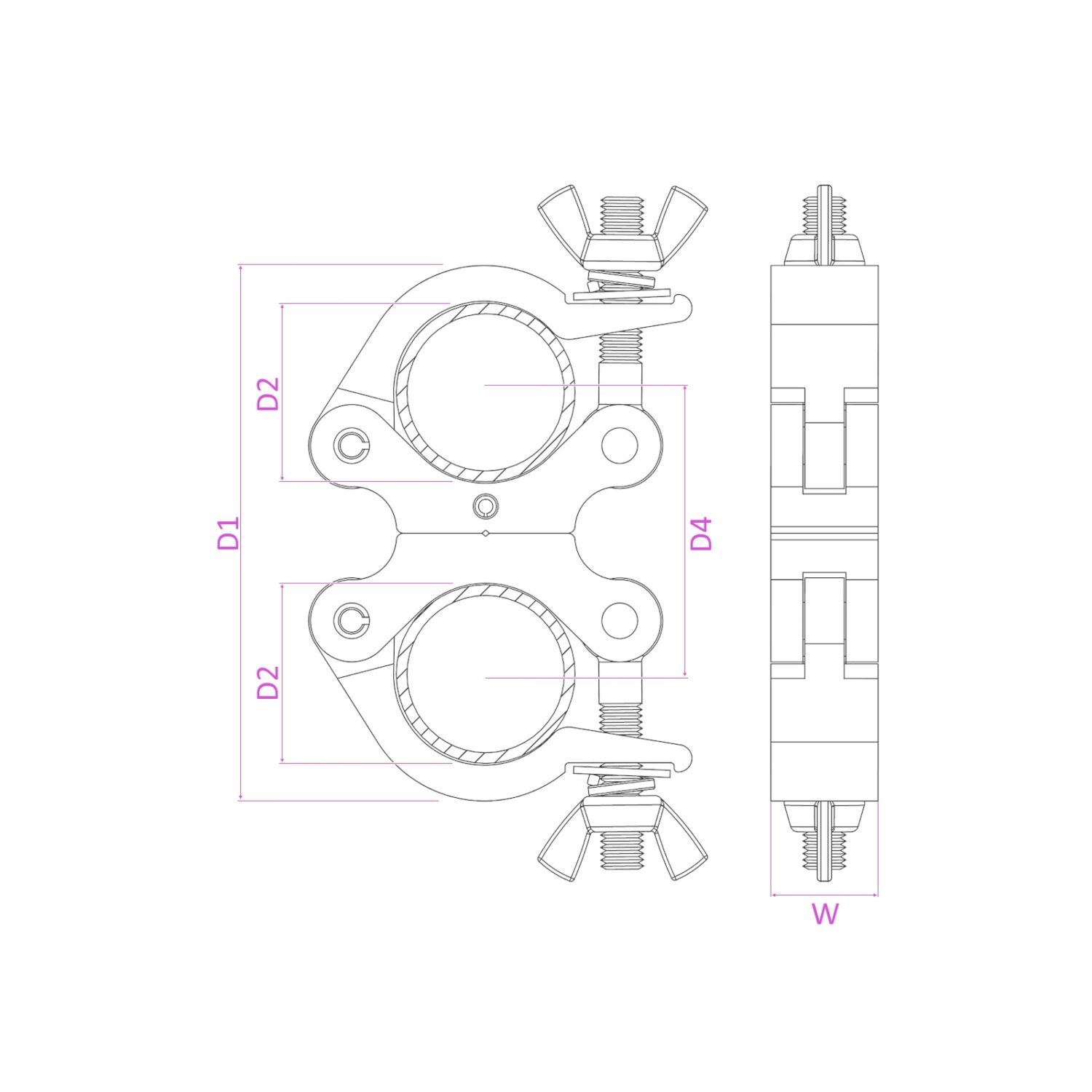

D1 (1mm)	144mm
D2 (1mm)	48 - 51mm
D4 (1mm)	78mm
W (1mm)	30mm
Threaded Bolt	M10
Max. weight load per piece	200kg
Weight (kg)	0.6600
