Clamps

BC50-100D Swivel Coupler Slimline 100kg Alu

Name: BC50-100D Swivel Coupler Slimline 100kg Alu
Brand: beamZ
SKU: 151.411
Availability: InStock

SKU: 151.411

Price on enquiry

Enquire Now

Heavy duty aluminium clamp
Butterfly and nut fixing

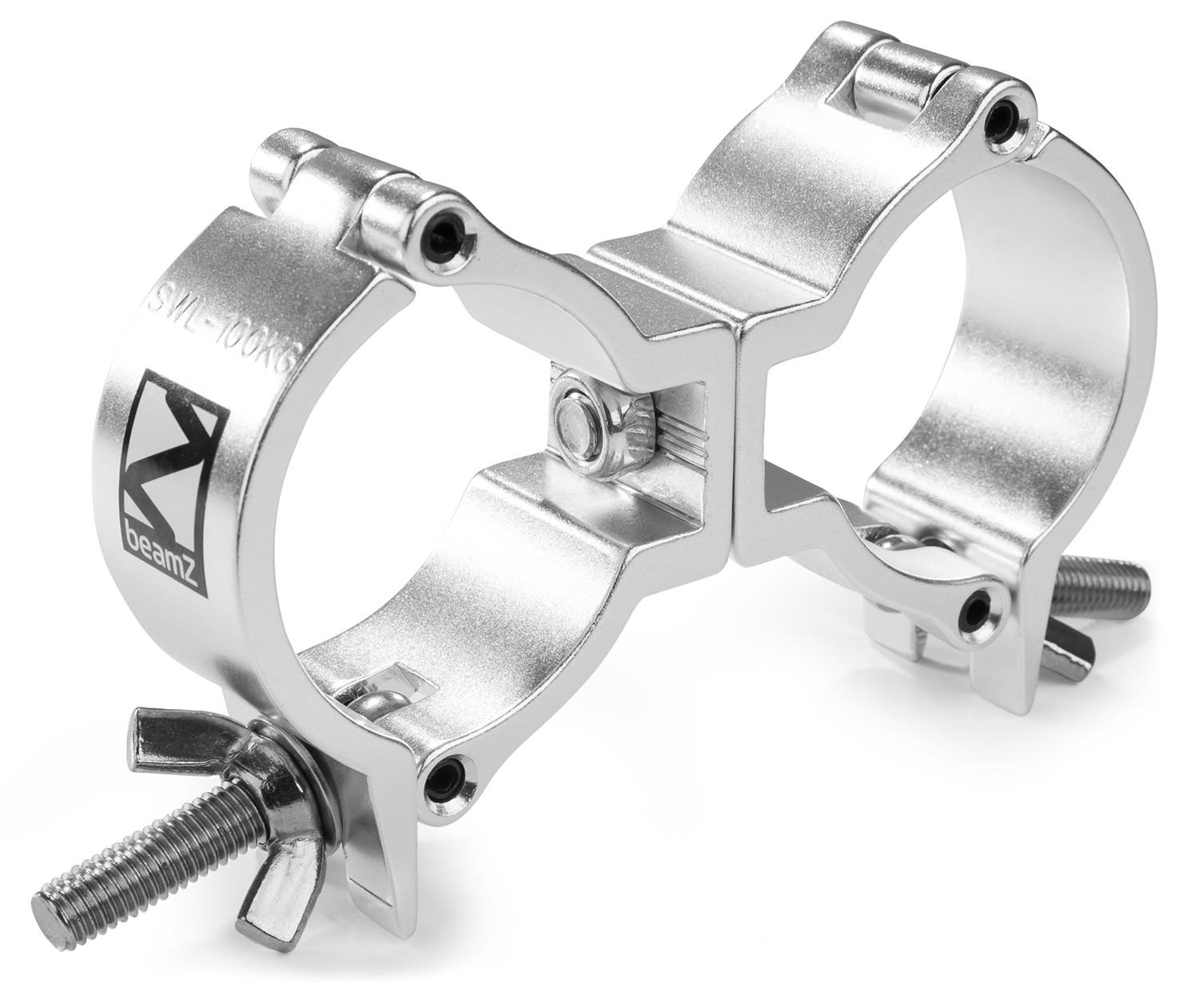

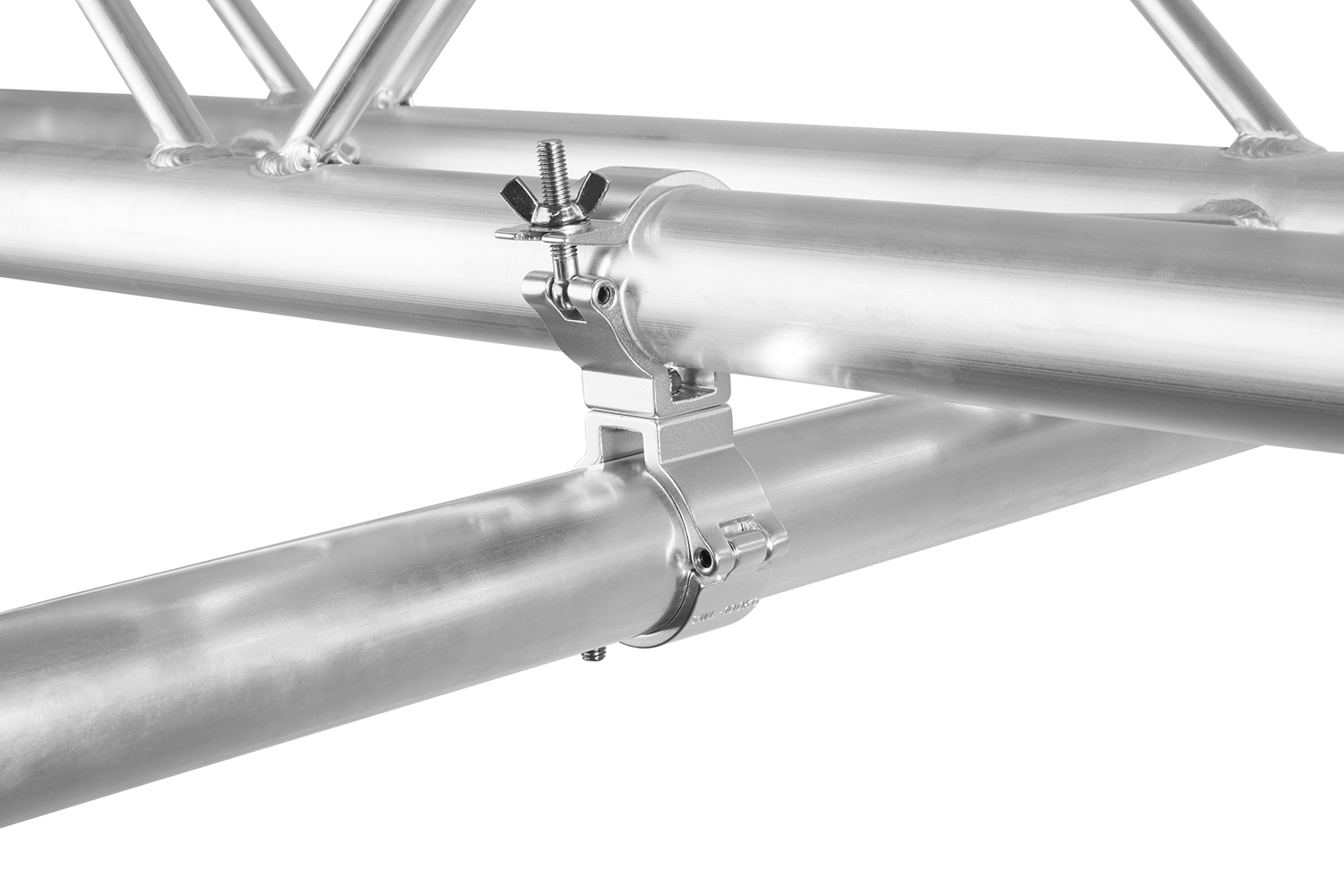

Heavy duty universal aluminium slimline swivel coupler for pipe and truss mounting fixtures. Swivel Coupler provides a firm fixing between adjacent bars whilst allowing 360 degrees of movement. High-strength aluminum construction.

Back to Clamps

Product colour	Aluminium
Material	Aluminum

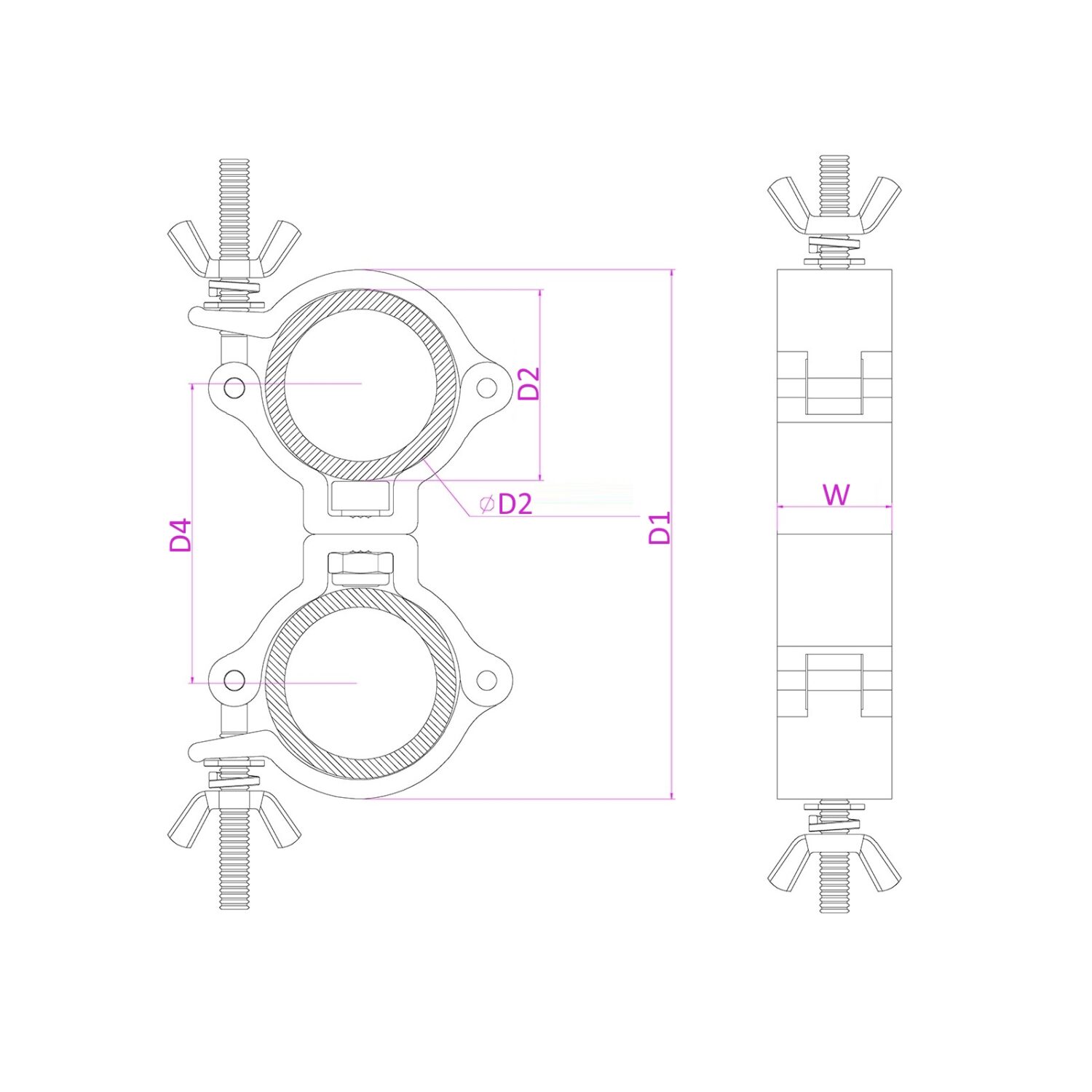

D1 (1mm)	132mm
D2 (1mm)	48 - 51mm
D4 (1mm)	80mm
W (1mm)	30mm
Threaded Bolt	M10
Max. weight load per piece	100kg
Weight (kg)	0.2000
